| ชื่อแบรนด์: | CSJY |
| เลขรุ่น: | JMC1810 |
| ขั้นต่ำ: | 2 |
| ราคา: | Negotiate |
| รายละเอียดการบรรจุ: | กล่อง |
| เงื่อนไขการจ่ายเงิน: | T/T |

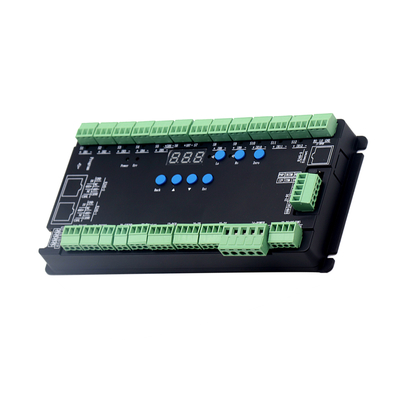

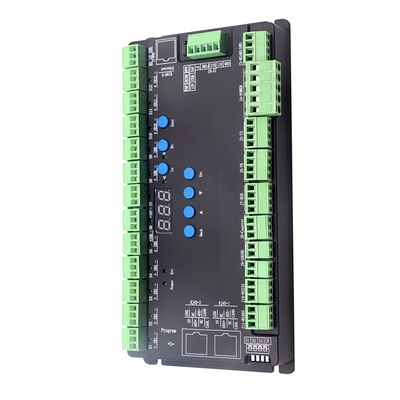

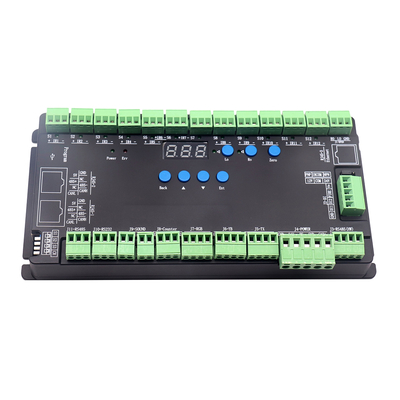

Metro Station Retractable Flap Gate Control Board with 16 Pairs Infrared Sensors Interface
Product description
|
Input Voltage
|
DC 24 ~ 30V
|
|
Reference Current
|
Single-sided 3A (depending on the light load decision)
|
|
Infrared sensor input
|
PNP|NPN NO|NC 12V|24V
12 independent IR interfaces on board
External IR expansion board available
|
|
Communication Interface
|
RS232/RS485/CAN
|
|
Sound and light control
|
Welcome light, pass light, RGB tricolor light, status light
Speaker (8W 4Ω), Buzzer (12V 100mA)
|
|
Hardware Protection
|
Under-voltage, over-current, input reversal
|
|
Passage detection
|
Tailgating
Breaking the gate
Retrograde
Detention
|
|
Firefighting interface
|
On-board NPN input
|
Key Advantages
16 Pairs of Infrared Sensor Interface
Supports up to 16 pairs of IR sensors for precise detection of entry, exit, and tailgating attempts.
High-Speed Data Processing
Equipped with an advanced microcontroller for real-time control and rapid signal response.
Bi-Directional Passage Control
Allows for both entry and exit logic with customizable access rules.
Anti-Tailgating & Anti-Pinch Function
Enhanced logic control to prevent unauthorized trailing and to ensure passenger safety during gate movement.
Flexible I/O Interfaces
Multiple communication options including RS232/RS485, CAN, and optional relay outputs for alarm and door control.
Self-Diagnosis & Real-Time Monitoring
Monitors sensor states, motor conditions, and power supply in real-time; provides error codes and fault feedback.
Customizable Gate Logic
Compatible with various IC/ID card readers, facial recognition systems, and QR code scanners.
Stable Power Management
Designed with over-voltage, over-current, and short-circuit protection to ensure long-term reliability.
Compact Design for Easy Integration
Fits into standard flap barrier or swing gate chassis; simple wiring and installation.
Software Upgrade Support
Firmware can be updated via serial interface or remote module for future expansion or optimization.
Application
This control board suitable for swing gate, speed gate, sliding gate hign-end turnstile gate's application.
RFQ
1. How about your company's actual strength?
We have more than 100 employees, a R&D group with 50 people,1 office and 1 factories. Factories and office buildings are larger than 1500 square meters.
2. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
3. How long is your warranty period?
One-year guarantee & Life-time technology support.
4. How do you do after-sale service?
We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
5. How long is your warranty period?
One-year guarantee & Life-time technology support
For more further information welcome to contact us, whatsapp +86 15218146199
|
|
