| ชื่อแบรนด์: | CSJY |
| เลขรุ่น: | EBS90R-400A-30T1E5F-B1EL-S4-00 |
| ขั้นต่ำ: | 1 |
| ราคา: | according to quantities |
| รายละเอียดการบรรจุ: | กล่องกระดาษ |
| เงื่อนไขการจ่ายเงิน: | t/t |

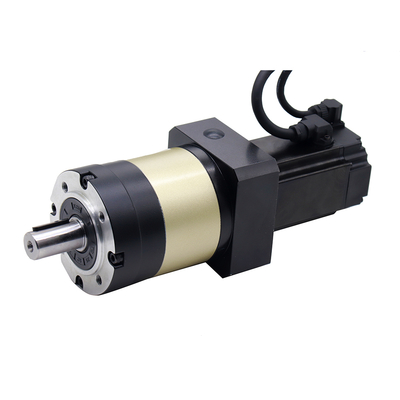

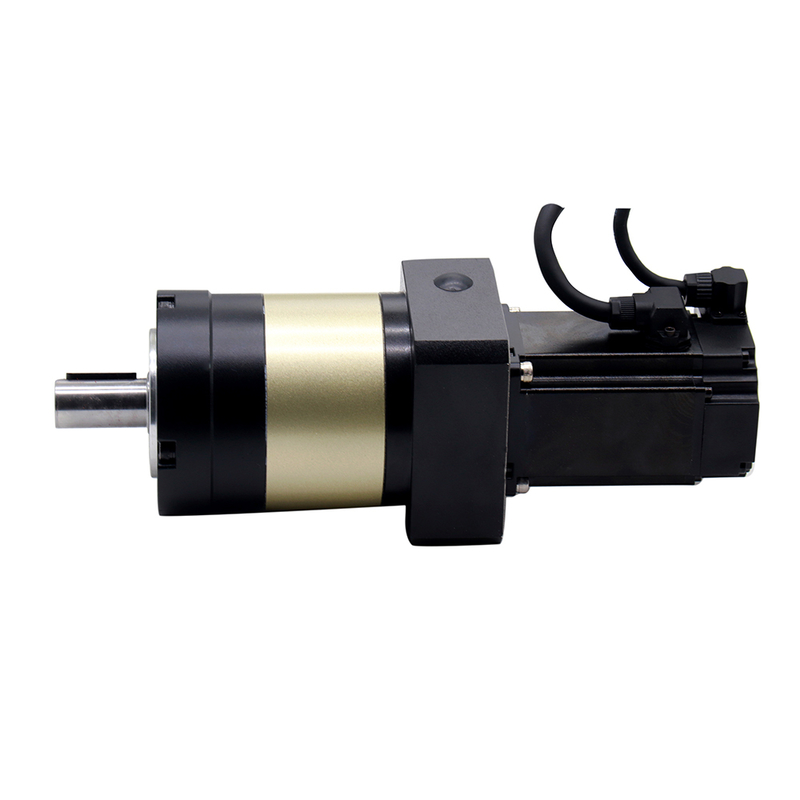

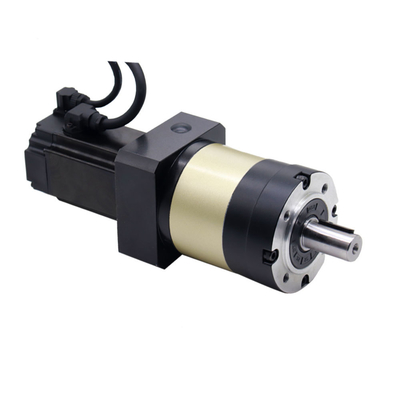

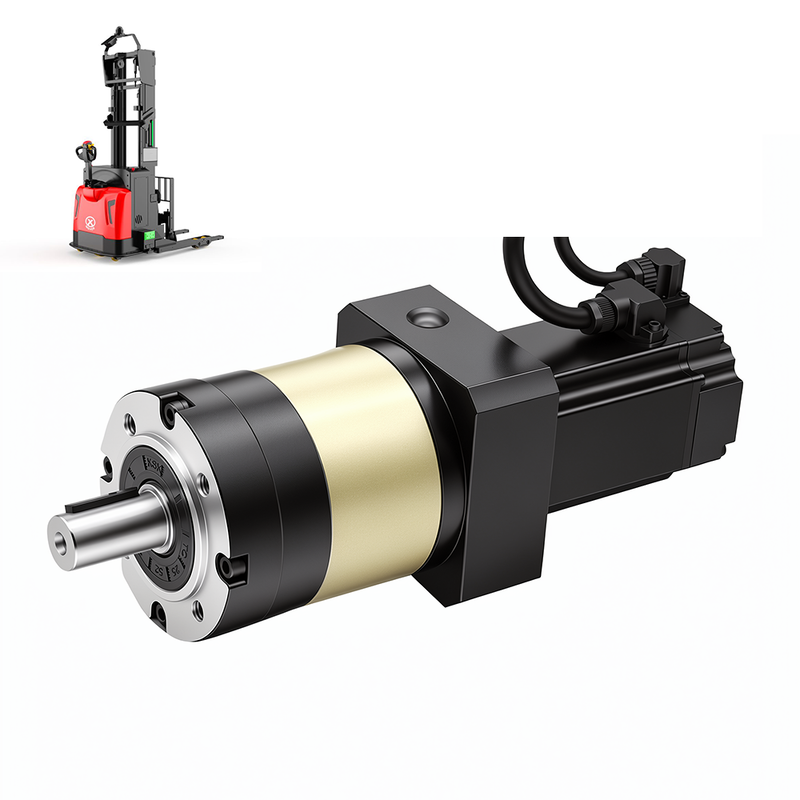

24V 400W Tamagawa17-bitabsolute Single-turnencoder Electric Forklift Drive Motor
This is a 48V 400W electric forklift drive and steering motor with a 25:1 reduction ratio and a rated
torque of 1.27 Nm. It has a rated current of 10.5A and a 17-bit single-turn absolute encoder for precise
positioning. It has an IP65 protection rating and can be applied in various environments.
Strong Overload Capacity
It can withstand a load three times the rated torque.It is applicable to the instantaneous load fluctuationsof forklifts under heavy load conditions;
Customized Service
It can be customized according to the forklift model andapplication scenarios to meet special needs.
Suitable for All Kinds of Environments
With an lP65 protection rating, it can be applied in variousenvironments, such as high temperature,
high voltage,high humidity and other harsh conditions.
Specification
| Rated Voltage | 48V |
| Reduction ratio | 25:1 |
| Rated Power | 400W |
| Rated torque |
1.27Nm |
| Rated Curent | 21A |
| Rated speed |
120rpm |
| Encoder type | Tamagawa17-bitabsolute single-turnencoder |
Application:
|
|
| ชื่อแบรนด์: | CSJY |
| เลขรุ่น: | EBS90R-400A-30T1E5F-B1EL-S4-00 |
| ขั้นต่ำ: | 1 |
| ราคา: | according to quantities |
| รายละเอียดการบรรจุ: | กล่องกระดาษ |
| เงื่อนไขการจ่ายเงิน: | t/t |
24V 400W Tamagawa17-bitabsolute Single-turnencoder Electric Forklift Drive Motor
This is a 48V 400W electric forklift drive and steering motor with a 25:1 reduction ratio and a rated
torque of 1.27 Nm. It has a rated current of 10.5A and a 17-bit single-turn absolute encoder for precise
positioning. It has an IP65 protection rating and can be applied in various environments.
Strong Overload Capacity
It can withstand a load three times the rated torque.It is applicable to the instantaneous load fluctuationsof forklifts under heavy load conditions;
Customized Service
It can be customized according to the forklift model andapplication scenarios to meet special needs.
Suitable for All Kinds of Environments
With an lP65 protection rating, it can be applied in variousenvironments, such as high temperature,
high voltage,high humidity and other harsh conditions.
Specification
| Rated Voltage | 48V |
| Reduction ratio | 25:1 |
| Rated Power | 400W |
| Rated torque |
1.27Nm |
| Rated Curent | 21A |
| Rated speed |
120rpm |
| Encoder type | Tamagawa17-bitabsolute single-turnencoder |
Application:
